AiM Sports MXP Midsize Color TFT Dash and Data Logger
- Regular price
- $2,899.00
- Regular price
-
- Sale price
- $2,899.00
- Unit price
- per
Vendor : AiM
Sku : XA6MXPA20G1
Couldn't load pickup availability
AiM MXP Midsize Color Racing Dash
50% Bigger Display Than MXS in a Similar-Sized Package
This brilliant dash logger from AiM features a stunning high-contrast color 6" TFT display, an integrated LED shift array, configurable multicolor LED alarms, drag and drop multi page configuration, Wi-Fi and USB connectivity, included GPS08 Module, inertial platform, analog and digital inputs, digital outputs, Motorsport connectors, 4 GB of internal memory, 1,000Hz per channel sampling and support for over 1,000 ECU connections! That all adds up to an incredibly flexible, powerful, and useable information center at your fingertips in your race car.

Wide Range of Data Sources

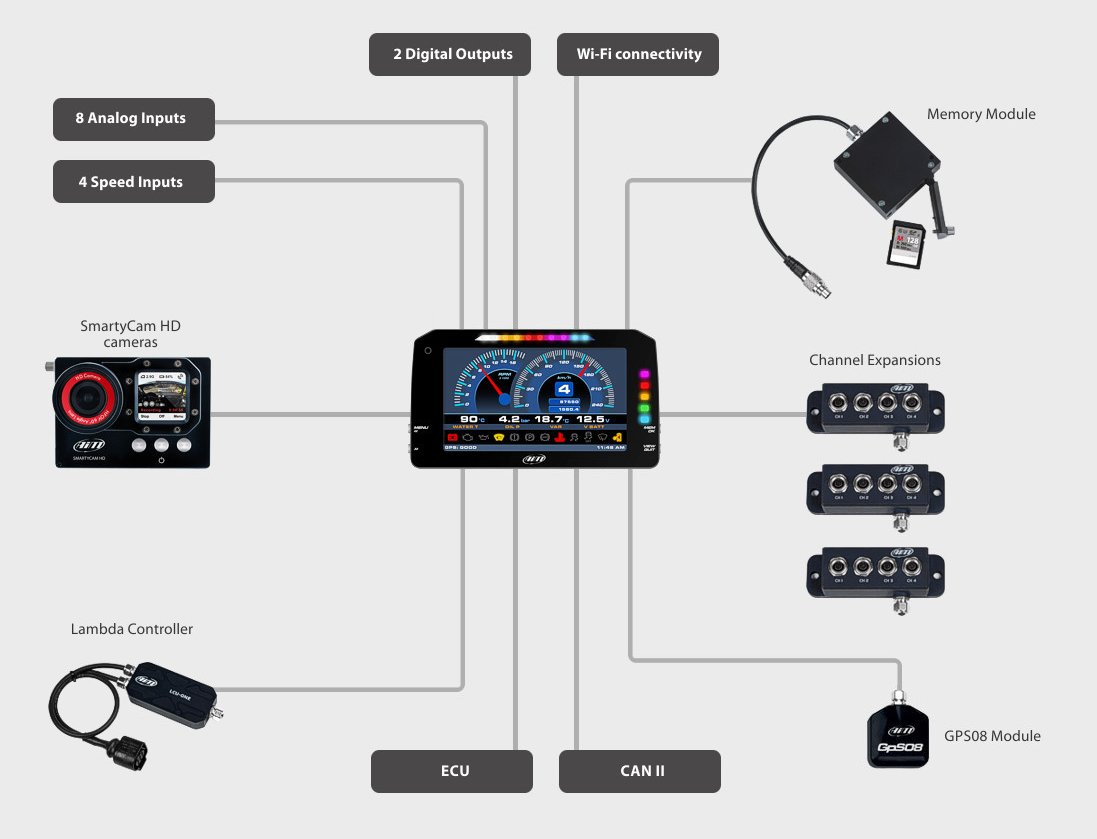

The AiM MXP samples data coming from your ECU, the GPS Module, its internal nine-axis inertial platform (accelerometer, gyro and magnetometer), eight fully configurable analog inputs, six digital inputs, predefined math channels and a second CAN. Performance info and data acquired can be expanded by adding up to eight expansion modules.
Multi-Configurable Pages
You can define all the custom pages you wish, choosing from a wide library of page styles, defining which data to be shown, their end of scale and units of measure. Swapping between pages is as simple as pushing one or two buttons!
Flexible Alarms and Icons
The MXP features five configurable RGB alarm LEDs: you choose the conditions, you choose the colors. Select a solid alarm or flashing one (and the flashing frequency), choose to have an accompanying text message, and set alarm priorities. You can also choose the street icons you need from a large list in Race Studio 3 - Icons Management, then set them up any way you prefer. They're all fully configurable, and if that's not enough, you can upload and set-up your own customized icons!
Twin Digital Outputs
MXP features two digital outputs. They can be configured to respond to the analog or digital inputs to automatically run external systems (e.g. to switch on/off additional lights, activate/de-activate a cooling fan or fluid circulation pumps, etc.)
Dual Motorsports Camera Inputs
Two analog camera inputs are available to swap your display into a mirror camera or rear-view camera through either push button command or in response to certain programmable events. Especially useful in a race car with limited visibility/sight lines.
LED Shift Light Array
Choose from a host of advanced multicolored RGB shift light patterns that can be customized as you like, including RPM settings for each individual gear.
WiFi Connectivity
It's so convenient to configure, calibrate, and download your data wirelessly using a secure 802.11 WiFi connection. No need to move your PC close to the vehicle anymore, you can do it from your trailer or tow vehicle up to 60 yards away.
AiM MXP Midsize Color TFT Dash/Data Logger Details
- Midsized 6" high-contrast color TFT display
- 800x480 pixel screen resolution
- 7.5" x 4.2" x 1.0" anodized aluminum housing
- Three CAN/RS232 connections
- 15 configurable RGB LEDs
- Weight 1.4 lbs (640g)
- 4GB internal memory
- Waterproof IP65
The AiM MXP Kit Includes:
- AiM MXP data-logger dash
- GPS09 Module with cable
- USB cable
- 37-pin Deutsch connector harness
- Installation CD with Race Studio 3 software
