Brembo GT Big Brake Kit - 2017-2024 Porsche Macan GTS - Front - 8-Piston 412x38 2-Piece - 1Q1.9633A
- Regular price
- $5,995.00
- Regular price
-
- Sale price
- $5,995.00
- Unit price
- per
Shipping calculated at checkout.
Made to order. To request a quote, email help@millaracing.com with the kit name and your vehicle. We'll confirm availability, lead time and exact shipping.
Vendor : Brembo
Sku : 1Q1.9633A-B-R1520
Hurry! Only
0
units left in stock!
Genuine Product Guarantee
No Knock-Offs
Secure Payments
Shop Securely 24/7
Fast Shipping
Worldwide
Top-Notch Support
Our Staff is Available to Assist
Description

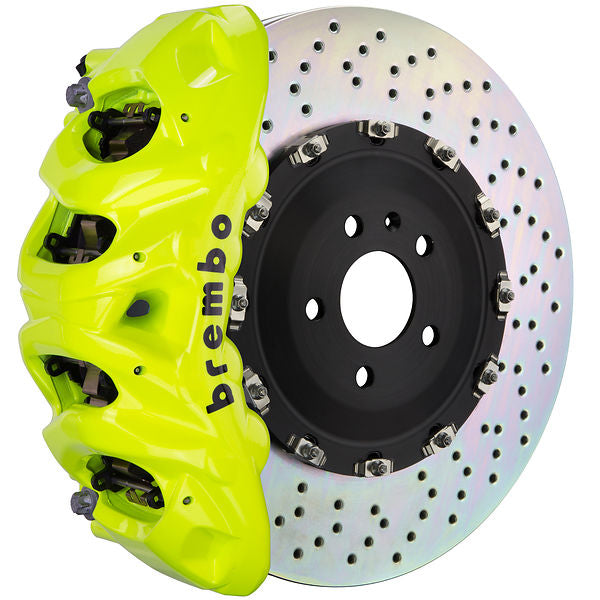

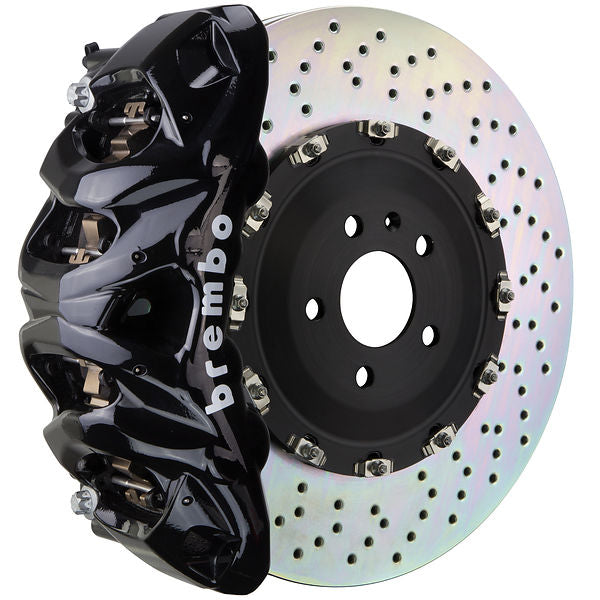

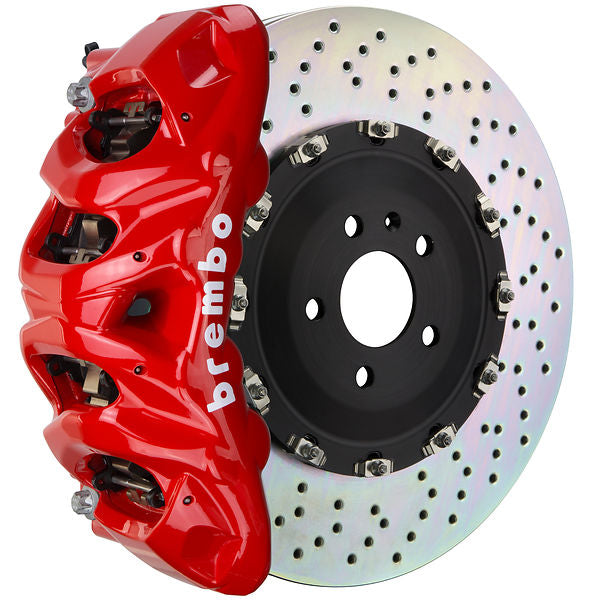

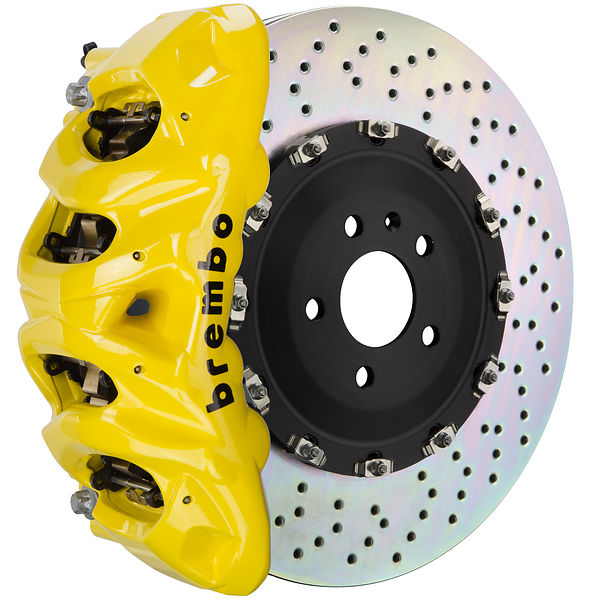

Brembo GT|BM front big brake kit for the 2017-2024 Porsche Macan GTS. A 8-piston caliper paired with 412x38 2-Piece discs, supplied as a complete axle set.
The kit uses a cast aluminum monobloc caliper and advanced high carbon alloy discs.
What's Included
- Brembo High Performance Brake Calipers
- Brembo High Performance Brake Discs, Pre-Assembled and Ready to Install
- Application-Specific Brembo Engineered Caliper Adapters
- Proprietary, Brembo Stainless Steel Brake Lines by Goodridge
- Brake Pads
- All Required Mounting Hardware
- Detailed Installation Instructions
Technical Specs
Brake Caliper
| Piston Count | 8 Piston |
|---|---|
| Caliper Finish | Painted |
| Caliper Material | Cast Aluminum |
| Caliper Construction | Monobloc |
| Mount Type | Radial |
| Quick Release Pad Retainer | Yes |
| Disc Construction | 2-Piece |
| Internal Fluid Crossover | Yes |
| Piston Type | P-Monobloc |
| Piston Material | Aluminum |
| Piston Insert Material | None |
| Dust Seal | Bellows |
| Bleed Screw | Single Concealed |
Brake Disc
| Disc Construction | 2-Piece |
|---|---|
| Disc Material | Advanced High Carbon Alloy |
| Disc Finish | Corrosion Resistant Plating |
| Disc Vane Design | Curved 48 Vane |
| Disc Diameter | 412 mm |
| Disc Thickness | 38 mm |
| Disc Air Gap | 12 mm |
| Disc Annulus | 75 mm |
| Disc Mounting System | Floating H-Bobbin with Anti-Rattle Spring |
Replacement Parts
| Disc, left | XP008L4 |
|---|---|
| Disc, right | XP008L5 |
| Hardware kit | 915507 |
| Bracket | 902C01 |
| Brake line | 903755 |
| Disc bell | 901B02 |
| Brake pads | Brake Pads for Brembo GT Brake Systems, Shape 1017 | Brembo FM1000 Compound, 18mm |
Wheel Fitment

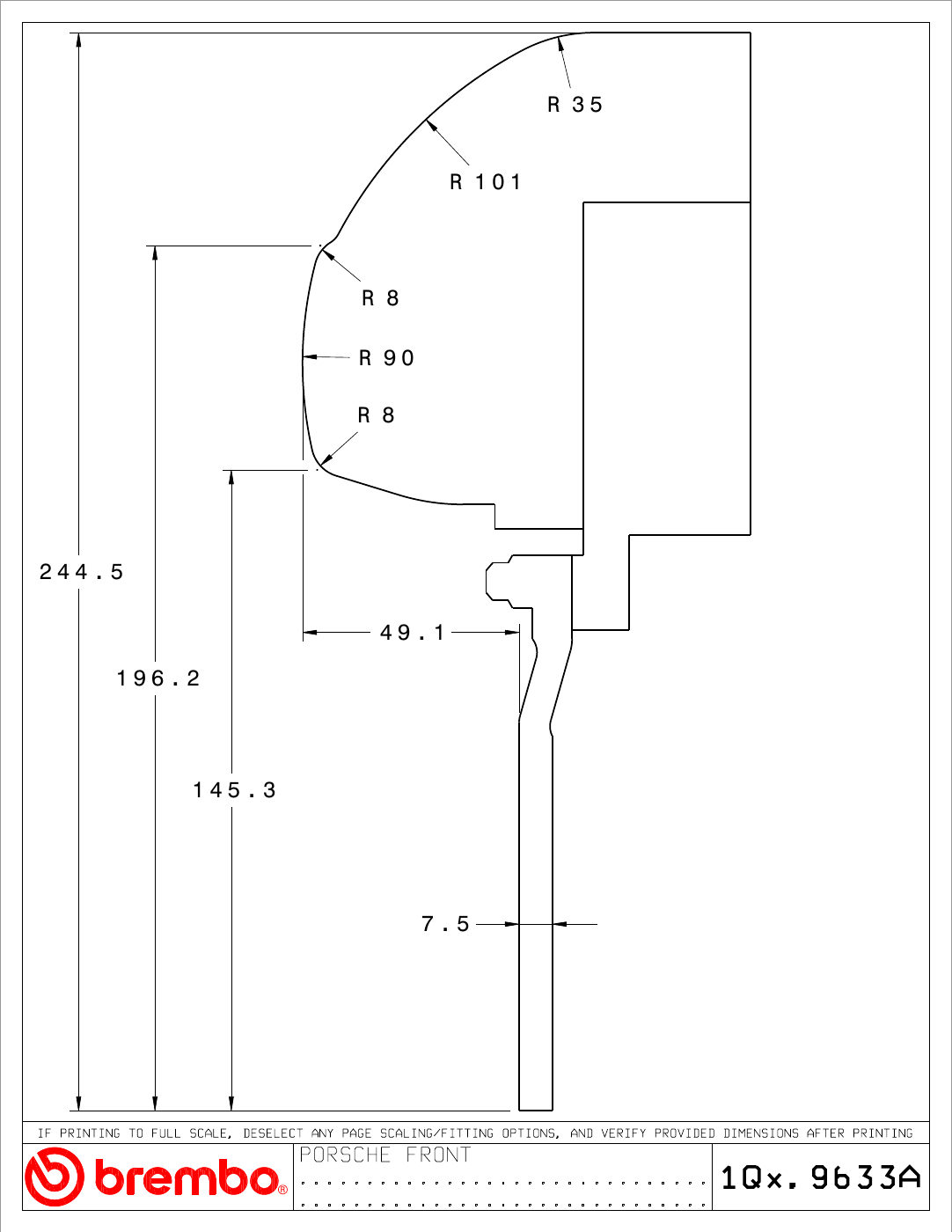

You must confirm wheel clearance before ordering. Big brake kits need adequate clearance regardless of wheel size. Measure your wheels against the brake profile drawing for this kit. Brembo GT systems are designed for original ride height.
The brake profile drawing for this kit is in the product images.
Vehicle Compatibility
- 2015-2024 Porsche Macan S
- 2017-2024 Porsche Macan GTS
- 2015-2021 Porsche Macan Turbo
Ordering
- Brake pad compound is selected when your quote is confirmed.
- Made to order. Availability and lead time depend on the configuration. Please contact us for a quote, availability and exact shipping before ordering. This item is special order and final sale.
